Diagnostic Settings Manager Workbook
All right class
This one is free to grab. No strings attached.
Getting resources into Sentinel is one of those tasks that sounds simple until you're staring at 200 storage accounts across six subscriptions wondering which ones are actually sending logs. Azure Policy helps, but it doesn't give you a single place to act on gaps and fix them in bulk.
This workbook does exactly that.

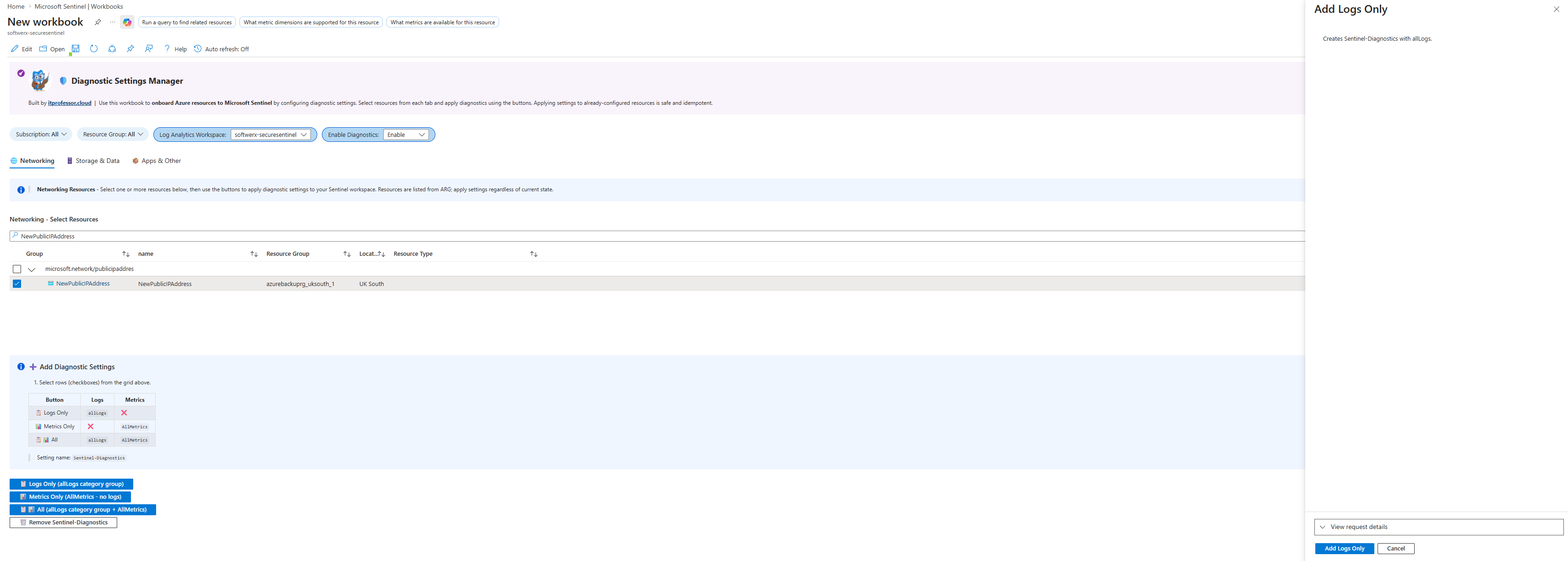

What it does
Three tabs. Networking, Storage & Data, Apps & Other. Each one lists every resource in your selected scope. You pick what you want to onboard, hit one of the buttons at the bottom, and it fires a PUT against the ARM API to create a diagnostic setting pointing at your Sentinel workspace. No scripting, no portal-hopping.
The storage tab is split by sub-service - Blob, File, Queue, Table - because that's how Azure actually works. One storage account can have four separate diagnostic setting targets and most people only configure the parent, then wonder why their blob read/write logs never show up.
There's also a remove button if you need to tear down a setting you've applied. It targets the setting named Sentinel-Diagnostics - the one this workbook creates.
One of the first questions you may have is why bother and not just use Azure Policy; YOU SHOULD use Azure Policy, the workbook is just an addition that can work in specific scenarios (like when you don't want to do a bunch of exclusions or double-checking your environment) + it's actually a really cool use case with ARM templates. You can translate the same logic into multiple other sources.
How to install
- Go to Microsoft Sentinel > Workbooks > New
- Click the Advanced Editor button (
</>) - Paste the JSON below
- Apply & Save
That's it. No Content Hub, no marketplace, no dependencies beyond a Log Analytics workspace.
{
"version": "Notebook/1.0",
"items": [
{
"type": 1,
"content": {
"json": "<img src=\"https://storage.ghost.io/c/3c/1d/3c1dd412-3b6a-4afe-8bbc-88099d729abf/content/images/size/w960/2025/11/ProfoLookingGoodToday.png\" width=\"52\" height=\"52\" style=\"border-radius:50%;object-fit:cover;vertical-align:middle;margin-right:12px\"/><strong style=\"font-size:18px;vertical-align:middle\">🛡️ Diagnostic Settings Manager</strong><br/><br/>Built by <a href=\"https://itprofessor.cloud\" target=\"_blank\"><strong>itprofessor.cloud</strong></a> | Use this workbook to <strong>onboard Azure resources to Microsoft Sentinel</strong> by configuring diagnostic settings. Select resources from each tab and apply diagnostics using the buttons. Applying settings to already-configured resources is safe and idempotent.",
"style": "upsell"
},
"name": "title"
},
{
"type": 9,
"content": {
"version": "KqlParameterItem/1.0",
"crossComponentResources": [
"{Subscription}"
],
"parameters": [
{
"id": "sub",
"version": "KqlParameterItem/1.0",
"name": "Subscription",
"type": 6,
"isRequired": true,
"multiSelect": true,
"quote": "'",
"delimiter": ",",
"typeSettings": {
"additionalResourceOptions": [
"value::all"
],
"includeAll": true,
"showDefault": false
},
"timeContext": {
"durationMs": 86400000
},
"value": [
"value::all"
]
},
{
"id": "rg",
"version": "KqlParameterItem/1.0",
"name": "ResourceGroup",
"label": "Resource Group",
"type": 5,
"isRequired": true,
"multiSelect": true,
"quote": "'",
"delimiter": ",",
"query": "ResourceContainers\n| where type =~ 'microsoft.resources/subscriptions/resourcegroups'\n| distinct resourceGroup",
"crossComponentResources": [
"{Subscription}"
],
"typeSettings": {
"additionalResourceOptions": [
"value::all"
],
"showDefault": false
},
"queryType": 1,
"value": [
"value::all"
]
},
{
"id": "ws",
"version": "KqlParameterItem/1.0",
"name": "WorkspaceId",
"label": "Log Analytics Workspace",
"type": 5,
"isRequired": true,
"typeSettings": {
"resourceTypeFilter": {
"microsoft.operationalinsights/workspaces": true
},
"additionalResourceOptions": [],
"showDefault": false
},
"query": "Resources\n| where type =~ 'microsoft.operationalinsights/workspaces'\n| project id",
"crossComponentResources": [
"{Subscription}"
],
"queryType": 1,
"value": ""
},
{
"id": "en",
"version": "KqlParameterItem/1.0",
"name": "EnableDiagnostics",
"label": "Enable Diagnostics",
"type": 2,
"isRequired": true,
"query": "{\"version\":\"1.0.0\",\"content\":\"[{\\\"value\\\":\\\"false\\\",\\\"label\\\":\\\"Disable\\\",\\\"selected\\\":true},{\\\"value\\\":\\\"true\\\",\\\"label\\\":\\\"Enable\\\"}]\",\"transformers\":null}",
"typeSettings": {
"additionalResourceOptions": [],
"showDefault": false
},
"queryType": 8,
"value": "true"
},
{
"id": "tab",
"version": "KqlParameterItem/1.0",
"name": "mainTab",
"type": 1,
"isHiddenWhenLocked": true,
"value": "networking"
}
],
"style": "pills",
"queryType": 1,
"resourceType": "microsoft.resourcegraph/resources"
},
"name": "parameters"
},
{
"type": 11,
"content": {
"version": "LinkItem/1.0",
"style": "tabs",
"links": [
{
"id": "tab-net",
"cellValue": "mainTab",
"linkTarget": "parameter",
"linkLabel": "🌐 Networking",
"subTarget": "networking",
"style": "link"
},
{
"id": "tab-stor",
"cellValue": "mainTab",
"linkTarget": "parameter",
"linkLabel": "🗄️ Storage & Data",
"subTarget": "storage",
"style": "link"
},
{
"id": "tab-apps",
"cellValue": "mainTab",
"linkTarget": "parameter",
"linkLabel": "📦 Apps & Other",
"subTarget": "apps",
"style": "link"
}
]
},
"name": "tabs"
},
{
"type": 12,
"content": {
"version": "NotebookGroup/1.0",
"groupType": "editable",
"items": [
{
"type": 1,
"content": {
"json": "> **Networking Resources** - Select one or more resources below, then use the buttons to apply diagnostic settings to your Sentinel workspace. Resources are listed from ARG; apply settings regardless of current state.",
"style": "info"
},
"name": "net-intro"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "Resources\n| where type in~ (\n \"microsoft.network/networksecuritygroups\",\n \"microsoft.network/publicipaddresses\",\n \"microsoft.network/virtualnetworks\",\n \"microsoft.network/azurefirewalls\",\n \"microsoft.network/loadbalancers\",\n \"microsoft.network/applicationgateways\",\n \"microsoft.network/virtualnetworkgateways\",\n \"microsoft.network/bastionhosts\"\n)\n| where resourceGroup in~ ({ResourceGroup:value})\n| extend resourceId = tolower(id)\n| join kind=leftouter (\n PolicyResources\n | where type =~ 'microsoft.policyinsights/policystates'\n | where properties.policyDefinitionAction =~ 'deployIfNotExists'\n | where tolower(tostring(properties.resourceType)) in~ (\n \"microsoft.network/networksecuritygroups\",\n \"microsoft.network/publicipaddresses\",\n \"microsoft.network/virtualnetworks\",\n \"microsoft.network/azurefirewalls\",\n \"microsoft.network/loadbalancers\",\n \"microsoft.network/applicationgateways\",\n \"microsoft.network/virtualnetworkgateways\",\n \"microsoft.network/bastionhosts\"\n )\n | where tostring(properties.complianceState) =~ 'Compliant'\n | project resourceId = tolower(tostring(properties.resourceId))\n) on resourceId\n| where isempty(resourceId1)\n| project subscriptionId, Resource=id, name, resourceGroup, location, type",
"size": 1,
"title": "Networking - Select Resources",
"noDataMessage": "✅ No networking resources found in the selected scope.",
"exportMultipleValues": true,
"exportedParameters": [
{
"fieldName": "Resource",
"parameterName": "resources",
"parameterType": 5
}
],
"showExportToExcel": true,
"queryType": 1,
"resourceType": "microsoft.resourcegraph/resources",
"crossComponentResources": [
"{Subscription}"
],
"visualization": "table",
"gridSettings": {
"formatters": [
{
"columnMatch": "$gen_group",
"formatter": 13,
"formatOptions": {
"linkTarget": "Resource",
"showIcon": true
}
},
{
"columnMatch": "subscriptionId",
"formatter": 5
},
{
"columnMatch": "Resource",
"formatter": 5
},
{
"columnMatch": "location",
"formatter": 17
},
{
"columnMatch": "type",
"formatter": 11,
"formatOptions": {
"showIcon": true
}
},
{
"columnMatch": "Details",
"formatter": 7,
"formatOptions": {
"linkTarget": "CellDetails",
"linkLabel": "View Details",
"linkIsContextBlade": true
}
}
],
"rowLimit": 500,
"filter": true,
"hierarchySettings": {
"treeType": 1,
"groupBy": [
"type"
],
"expandTopLevel": true,
"finalBy": "Resource"
},
"labelSettings": [
{
"columnId": "subscriptionId",
"label": "Subscription"
},
{
"columnId": "Resource",
"label": "Resource"
},
{
"columnId": "resourceGroup",
"label": "Resource Group"
},
{
"columnId": "location",
"label": "Location"
},
{
"columnId": "type",
"label": "Resource Type"
}
]
}
},
"name": "grid-net"
},
{
"type": 12,
"content": {
"version": "NotebookGroup/1.0",
"groupType": "editable",
"items": [
{
"type": 1,
"content": {
"json": "### ➕ Add Diagnostic Settings\n\n1. Select rows (checkboxes) from the grid above.\n\n| Button | Logs | Metrics |\n|--------|------|--------|\n| 📋 Logs Only | `allLogs` | ❌ |\n| 📊 Metrics Only | ❌ | `AllMetrics` |\n| 📋📊 All | `allLogs` | `AllMetrics` |\n\n> Setting name: `Sentinel-Diagnostics`",
"style": "info"
},
"name": "intro-net"
},
{
"type": 11,
"content": {
"version": "LinkItem/1.0",
"style": "list",
"links": [
{
"id": "logs-net",
"cellValue": "resources",
"linkTarget": "ArmAction",
"linkLabel": "📋 Logs Only (allLogs category group)",
"style": "primary",
"linkIsContextBlade": true,
"armActionContext": {
"path": "{resources}/providers/microsoft.insights/diagnosticSettings/Sentinel-Diagnostics",
"headers": [],
"params": [
{
"key": "api-version",
"value": "2021-05-01-preview"
}
],
"isLongOperation": false,
"httpMethod": "PUT",
"applyToMultipleResourcesParameter": "resources",
"title": "Add Logs Only",
"description": "Creates Sentinel-Diagnostics with allLogs.",
"actionName": "Add Logs Only",
"runLabel": "Add Logs Only",
"body": "{\"properties\": {\"workspaceId\": \"{WorkspaceId}\", \"logs\": [{\"categoryGroup\": \"allLogs\", \"enabled\": true, \"retentionPolicy\": {\"days\": 0, \"enabled\": false}}]}}"
}
},
{
"id": "metrics-net",
"cellValue": "resources",
"linkTarget": "ArmAction",
"linkLabel": "📊 Metrics Only (AllMetrics - no logs)",
"style": "primary",
"linkIsContextBlade": true,
"armActionContext": {
"path": "{resources}/providers/microsoft.insights/diagnosticSettings/Sentinel-Diagnostics",
"headers": [],
"params": [
{
"key": "api-version",
"value": "2021-05-01-preview"
}
],
"isLongOperation": false,
"httpMethod": "PUT",
"applyToMultipleResourcesParameter": "resources",
"title": "Add Metrics Only",
"description": "Creates Sentinel-Diagnostics with AllMetrics.",
"actionName": "Add Metrics Only",
"runLabel": "Add Metrics Only",
"body": "{\"properties\": {\"workspaceId\": \"{WorkspaceId}\", \"metrics\": [{\"category\": \"AllMetrics\", \"enabled\": true, \"retentionPolicy\": {\"days\": 0, \"enabled\": false}}]}}"
}
},
{
"id": "all-net",
"cellValue": "resources",
"linkTarget": "ArmAction",
"linkLabel": "📋📊 All (allLogs category group + AllMetrics)",
"style": "primary",
"linkIsContextBlade": true,
"armActionContext": {
"path": "{resources}/providers/microsoft.insights/diagnosticSettings/Sentinel-Diagnostics",
"headers": [],
"params": [
{
"key": "api-version",
"value": "2021-05-01-preview"
}
],
"isLongOperation": false,
"httpMethod": "PUT",
"applyToMultipleResourcesParameter": "resources",
"title": "Add Logs + Metrics",
"description": "Creates Sentinel-Diagnostics with allLogs and AllMetrics.",
"actionName": "Add Logs + Metrics",
"runLabel": "Add Logs + Metrics",
"body": "{\"properties\": {\"workspaceId\": \"{WorkspaceId}\", \"logs\": [{\"categoryGroup\": \"allLogs\", \"enabled\": true, \"retentionPolicy\": {\"days\": 0, \"enabled\": false}}], \"metrics\": [{\"category\": \"AllMetrics\", \"enabled\": true, \"retentionPolicy\": {\"days\": 0, \"enabled\": false}}]}}"
}
},
{
"id": "delete-net",
"cellValue": "resources",
"linkTarget": "ArmAction",
"linkLabel": "🗑️ Remove Sentinel-Diagnostics",
"style": "secondary",
"linkIsContextBlade": true,
"armActionContext": {
"path": "{resources}/providers/microsoft.insights/diagnosticSettings/Sentinel-Diagnostics",
"headers": [],
"params": [
{
"key": "api-version",
"value": "2021-05-01-preview"
}
],
"isLongOperation": false,
"httpMethod": "DELETE",
"applyToMultipleResourcesParameter": "resources",
"title": "Remove Diagnostic Setting",
"description": "Deletes the Sentinel-Diagnostics diagnostic setting from the selected resources. Only removes the setting named 'Sentinel-Diagnostics'.",
"actionName": "Remove Sentinel-Diagnostics",
"runLabel": "Remove Sentinel-Diagnostics",
"body": ""
}
}
]
},
"name": "links-net"
}
]
},
"conditionalVisibility": {
"parameterName": "EnableDiagnostics",
"comparison": "isEqualTo",
"value": "true"
},
"name": "group-arm-net"
}
]
},
"conditionalVisibility": {
"parameterName": "mainTab",
"comparison": "isEqualTo",
"value": "networking"
},
"name": "group-networking"
},
{
"type": 12,
"content": {
"version": "NotebookGroup/1.0",
"groupType": "editable",
"items": [
{
"type": 1,
"content": {
"json": "> **Storage Resources** - Select storage accounts from each grid below, then click the button to configure diagnostics for that sub-service (Blob, File, Queue, Table). Each sub-service must be configured separately.",
"style": "warning"
},
"name": "stor-intro"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "Resources\n| where type in~ (\n \"microsoft.storage/storageaccounts\"\n)\n| where resourceGroup in~ ({ResourceGroup:value})\n| extend resourceId = tolower(id)\n| join kind=leftouter (\n PolicyResources\n | where type =~ 'microsoft.policyinsights/policystates'\n | where properties.policyDefinitionAction =~ 'deployIfNotExists'\n | where tolower(tostring(properties.resourceType)) in~ (\n \"microsoft.storage/storageaccounts\"\n )\n | where tostring(properties.complianceState) =~ 'Compliant'\n | project resourceId = tolower(tostring(properties.resourceId))\n) on resourceId\n| where isempty(resourceId1)\n| project subscriptionId, Resource=id, name, resourceGroup, location, type",
"size": 1,
"title": "Blob - Select Storage Accounts",
"noDataMessage": "✅ No storage accounts found in the selected scope.",
"exportMultipleValues": true,
"exportedParameters": [
{
"fieldName": "Resource",
"parameterName": "res_blob",
"parameterType": 5
}
],
"showExportToExcel": true,
"queryType": 1,
"resourceType": "microsoft.resourcegraph/resources",
"crossComponentResources": [
"{Subscription}"
],
"visualization": "table",
"gridSettings": {
"formatters": [
{
"columnMatch": "Resource",
"formatter": 13,
"formatOptions": {
"linkTarget": "Resource",
"showIcon": true
}
},
{
"columnMatch": "storageAccountName",
"formatter": 0
},
{
"columnMatch": "resourceGroup",
"formatter": 0
},
{
"columnMatch": "location",
"formatter": 17
},
{
"columnMatch": "subscriptionId",
"formatter": 5
}
],
"rowLimit": 500,
"filter": true,
"labelSettings": [
{
"columnId": "Resource",
"label": "Storage Account"
},
{
"columnId": "storageAccountName",
"label": "Name"
},
{
"columnId": "resourceGroup",
"label": "Resource Group"
},
{
"columnId": "location",
"label": "Location"
},
{
"columnId": "subscriptionId",
"label": "Subscription"
}
]
}
},
"name": "grid-blob"
},
{
"type": 12,
"content": {
"version": "NotebookGroup/1.0",
"groupType": "editable",
"items": [
{
"type": 11,
"content": {
"version": "LinkItem/1.0",
"style": "list",
"links": [
{
"id": "btn-blob",
"cellValue": "res_blob",
"linkTarget": "ArmAction",
"linkLabel": "📋📊 🔵 Enable Blob Diagnostics",
"style": "primary",
"linkIsContextBlade": true,
"armActionContext": {
"path": "{res_blob}/blobServices/default/providers/microsoft.insights/diagnosticSettings/Sentinel-Diagnostics",
"headers": [],
"params": [
{
"key": "api-version",
"value": "2021-05-01-preview"
}
],
"isLongOperation": false,
"httpMethod": "PUT",
"applyToMultipleResourcesParameter": "res_blob",
"title": "Enable Blob Diagnostics",
"description": "Applies Sentinel-Diagnostics to blobServices/default",
"actionName": "Enable Blob Diagnostics",
"runLabel": "Enable Blob Diagnostics",
"body": "{\"properties\": {\"workspaceId\": \"{WorkspaceId}\", \"logs\": [{\"category\": \"StorageRead\", \"enabled\": true, \"retentionPolicy\": {\"days\": 0, \"enabled\": false}}, {\"category\": \"StorageWrite\", \"enabled\": true, \"retentionPolicy\": {\"days\": 0, \"enabled\": false}}, {\"category\": \"StorageDelete\", \"enabled\": true, \"retentionPolicy\": {\"days\": 0, \"enabled\": false}}], \"metrics\": [{\"category\": \"Transaction\", \"enabled\": true, \"retentionPolicy\": {\"days\": 0, \"enabled\": false}}]}}"
}
},
{
"id": "delete-blob",
"cellValue": "res_blob",
"linkTarget": "ArmAction",
"linkLabel": "🗑️ Remove Sentinel-Diagnostics",
"style": "secondary",
"linkIsContextBlade": true,
"armActionContext": {
"path": "{res_blob}/blobServices/default/providers/microsoft.insights/diagnosticSettings/Sentinel-Diagnostics",
"headers": [],
"params": [
{
"key": "api-version",
"value": "2021-05-01-preview"
}
],
"isLongOperation": false,
"httpMethod": "DELETE",
"applyToMultipleResourcesParameter": "res_blob",
"title": "Remove Diagnostic Setting",
"description": "Deletes the Sentinel-Diagnostics diagnostic setting from the selected resources. Only removes the setting named 'Sentinel-Diagnostics'.",
"actionName": "Remove Sentinel-Diagnostics",
"runLabel": "Remove Sentinel-Diagnostics",
"body": ""
}
}
]
},
"name": "btn-blob"
}
]
},
"conditionalVisibility": {
"parameterName": "EnableDiagnostics",
"comparison": "isEqualTo",
"value": "true"
},
"name": "arm-blob"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "Resources\n| where type in~ (\n \"microsoft.storage/storageaccounts\"\n)\n| where resourceGroup in~ ({ResourceGroup:value})\n| extend resourceId = tolower(id)\n| join kind=leftouter (\n PolicyResources\n | where type =~ 'microsoft.policyinsights/policystates'\n | where properties.policyDefinitionAction =~ 'deployIfNotExists'\n | where tolower(tostring(properties.resourceType)) in~ (\n \"microsoft.storage/storageaccounts\"\n )\n | where tostring(properties.complianceState) =~ 'Compliant'\n | project resourceId = tolower(tostring(properties.resourceId))\n) on resourceId\n| where isempty(resourceId1)\n| project subscriptionId, Resource=id, name, resourceGroup, location, type",
"size": 1,
"title": "File - Select Storage Accounts",
"noDataMessage": "✅ No storage accounts found in the selected scope.",
"exportMultipleValues": true,
"exportedParameters": [
{
"fieldName": "Resource",
"parameterName": "res_file",
"parameterType": 5
}
],
"showExportToExcel": true,
"queryType": 1,
"resourceType": "microsoft.resourcegraph/resources",
"crossComponentResources": [
"{Subscription}"
],
"visualization": "table",
"gridSettings": {
"formatters": [
{
"columnMatch": "Resource",
"formatter": 13,
"formatOptions": {
"linkTarget": "Resource",
"showIcon": true
}
},
{
"columnMatch": "storageAccountName",
"formatter": 0
},
{
"columnMatch": "resourceGroup",
"formatter": 0
},
{
"columnMatch": "location",
"formatter": 17
},
{
"columnMatch": "subscriptionId",
"formatter": 5
}
],
"rowLimit": 500,
"filter": true,
"labelSettings": [
{
"columnId": "Resource",
"label": "Storage Account"
},
{
"columnId": "storageAccountName",
"label": "Name"
},
{
"columnId": "resourceGroup",
"label": "Resource Group"
},
{
"columnId": "location",
"label": "Location"
},
{
"columnId": "subscriptionId",
"label": "Subscription"
}
]
}
},
"name": "grid-file"
},
{
"type": 12,
"content": {
"version": "NotebookGroup/1.0",
"groupType": "editable",
"items": [
{
"type": 11,
"content": {
"version": "LinkItem/1.0",
"style": "list",
"links": [
{
"id": "btn-file",
"cellValue": "res_file",
"linkTarget": "ArmAction",
"linkLabel": "📋📊 📁 Enable File Diagnostics",
"style": "primary",
"linkIsContextBlade": true,
"armActionContext": {
"path": "{res_file}/fileServices/default/providers/microsoft.insights/diagnosticSettings/Sentinel-Diagnostics",
"headers": [],
"params": [
{
"key": "api-version",
"value": "2021-05-01-preview"
}
],
"isLongOperation": false,
"httpMethod": "PUT",
"applyToMultipleResourcesParameter": "res_file",
"title": "Enable File Diagnostics",
"description": "Applies Sentinel-Diagnostics to fileServices/default",
"actionName": "Enable File Diagnostics",
"runLabel": "Enable File Diagnostics",
"body": "{\"properties\": {\"workspaceId\": \"{WorkspaceId}\", \"logs\": [{\"category\": \"StorageRead\", \"enabled\": true, \"retentionPolicy\": {\"days\": 0, \"enabled\": false}}, {\"category\": \"StorageWrite\", \"enabled\": true, \"retentionPolicy\": {\"days\": 0, \"enabled\": false}}, {\"category\": \"StorageDelete\", \"enabled\": true, \"retentionPolicy\": {\"days\": 0, \"enabled\": false}}], \"metrics\": [{\"category\": \"Transaction\", \"enabled\": true, \"retentionPolicy\": {\"days\": 0, \"enabled\": false}}]}}"
}
},
{
"id": "delete-file",
"cellValue": "res_file",
"linkTarget": "ArmAction",
"linkLabel": "🗑️ Remove Sentinel-Diagnostics",
"style": "secondary",
"linkIsContextBlade": true,
"armActionContext": {
"path": "{res_file}/fileServices/default/providers/microsoft.insights/diagnosticSettings/Sentinel-Diagnostics",
"headers": [],
"params": [
{
"key": "api-version",
"value": "2021-05-01-preview"
}
],
"isLongOperation": false,
"httpMethod": "DELETE",
"applyToMultipleResourcesParameter": "res_file",
"title": "Remove Diagnostic Setting",
"description": "Deletes the Sentinel-Diagnostics diagnostic setting from the selected resources. Only removes the setting named 'Sentinel-Diagnostics'.",
"actionName": "Remove Sentinel-Diagnostics",
"runLabel": "Remove Sentinel-Diagnostics",
"body": ""
}
}
]
},
"name": "btn-file"
}
]
},
"conditionalVisibility": {
"parameterName": "EnableDiagnostics",
"comparison": "isEqualTo",
"value": "true"
},
"name": "arm-file"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "Resources\n| where type in~ (\n \"microsoft.storage/storageaccounts\"\n)\n| where resourceGroup in~ ({ResourceGroup:value})\n| extend resourceId = tolower(id)\n| join kind=leftouter (\n PolicyResources\n | where type =~ 'microsoft.policyinsights/policystates'\n | where properties.policyDefinitionAction =~ 'deployIfNotExists'\n | where tolower(tostring(properties.resourceType)) in~ (\n \"microsoft.storage/storageaccounts\"\n )\n | where tostring(properties.complianceState) =~ 'Compliant'\n | project resourceId = tolower(tostring(properties.resourceId))\n) on resourceId\n| where isempty(resourceId1)\n| project subscriptionId, Resource=id, name, resourceGroup, location, type",
"size": 1,
"title": "Queue - Select Storage Accounts",
"noDataMessage": "✅ No storage accounts found in the selected scope.",
"exportMultipleValues": true,
"exportedParameters": [
{
"fieldName": "Resource",
"parameterName": "res_queue",
"parameterType": 5
}
],
"showExportToExcel": true,
"queryType": 1,
"resourceType": "microsoft.resourcegraph/resources",
"crossComponentResources": [
"{Subscription}"
],
"visualization": "table",
"gridSettings": {
"formatters": [
{
"columnMatch": "Resource",
"formatter": 13,
"formatOptions": {
"linkTarget": "Resource",
"showIcon": true
}
},
{
"columnMatch": "storageAccountName",
"formatter": 0
},
{
"columnMatch": "resourceGroup",
"formatter": 0
},
{
"columnMatch": "location",
"formatter": 17
},
{
"columnMatch": "subscriptionId",
"formatter": 5
}
],
"rowLimit": 500,
"filter": true,
"labelSettings": [
{
"columnId": "Resource",
"label": "Storage Account"
},
{
"columnId": "storageAccountName",
"label": "Name"
},
{
"columnId": "resourceGroup",
"label": "Resource Group"
},
{
"columnId": "location",
"label": "Location"
},
{
"columnId": "subscriptionId",
"label": "Subscription"
}
]
}
},
"name": "grid-queue"
},
{
"type": 12,
"content": {
"version": "NotebookGroup/1.0",
"groupType": "editable",
"items": [
{
"type": 11,
"content": {
"version": "LinkItem/1.0",
"style": "list",
"links": [
{
"id": "btn-queue",
"cellValue": "res_queue",
"linkTarget": "ArmAction",
"linkLabel": "📋📊 📬 Enable Queue Diagnostics",
"style": "primary",
"linkIsContextBlade": true,
"armActionContext": {
"path": "{res_queue}/queueServices/default/providers/microsoft.insights/diagnosticSettings/Sentinel-Diagnostics",
"headers": [],
"params": [
{
"key": "api-version",
"value": "2021-05-01-preview"
}
],
"isLongOperation": false,
"httpMethod": "PUT",
"applyToMultipleResourcesParameter": "res_queue",
"title": "Enable Queue Diagnostics",
"description": "Applies Sentinel-Diagnostics to queueServices/default",
"actionName": "Enable Queue Diagnostics",
"runLabel": "Enable Queue Diagnostics",
"body": "{\"properties\": {\"workspaceId\": \"{WorkspaceId}\", \"logs\": [{\"category\": \"StorageRead\", \"enabled\": true, \"retentionPolicy\": {\"days\": 0, \"enabled\": false}}, {\"category\": \"StorageWrite\", \"enabled\": true, \"retentionPolicy\": {\"days\": 0, \"enabled\": false}}, {\"category\": \"StorageDelete\", \"enabled\": true, \"retentionPolicy\": {\"days\": 0, \"enabled\": false}}], \"metrics\": [{\"category\": \"Transaction\", \"enabled\": true, \"retentionPolicy\": {\"days\": 0, \"enabled\": false}}]}}"
}
},
{
"id": "delete-queue",
"cellValue": "res_queue",
"linkTarget": "ArmAction",
"linkLabel": "🗑️ Remove Sentinel-Diagnostics",
"style": "secondary",
"linkIsContextBlade": true,
"armActionContext": {
"path": "{res_queue}/queueServices/default/providers/microsoft.insights/diagnosticSettings/Sentinel-Diagnostics",
"headers": [],
"params": [
{
"key": "api-version",
"value": "2021-05-01-preview"
}
],
"isLongOperation": false,
"httpMethod": "DELETE",
"applyToMultipleResourcesParameter": "res_queue",
"title": "Remove Diagnostic Setting",
"description": "Deletes the Sentinel-Diagnostics diagnostic setting from the selected resources. Only removes the setting named 'Sentinel-Diagnostics'.",
"actionName": "Remove Sentinel-Diagnostics",
"runLabel": "Remove Sentinel-Diagnostics",
"body": ""
}
}
]
},
"name": "btn-queue"
}
]
},
"conditionalVisibility": {
"parameterName": "EnableDiagnostics",
"comparison": "isEqualTo",
"value": "true"
},
"name": "arm-queue"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "Resources\n| where type in~ (\n \"microsoft.storage/storageaccounts\"\n)\n| where resourceGroup in~ ({ResourceGroup:value})\n| extend resourceId = tolower(id)\n| join kind=leftouter (\n PolicyResources\n | where type =~ 'microsoft.policyinsights/policystates'\n | where properties.policyDefinitionAction =~ 'deployIfNotExists'\n | where tolower(tostring(properties.resourceType)) in~ (\n \"microsoft.storage/storageaccounts\"\n )\n | where tostring(properties.complianceState) =~ 'Compliant'\n | project resourceId = tolower(tostring(properties.resourceId))\n) on resourceId\n| where isempty(resourceId1)\n| project subscriptionId, Resource=id, name, resourceGroup, location, type",
"size": 1,
"title": "Table - Select Storage Accounts",
"noDataMessage": "✅ No storage accounts found in the selected scope.",
"exportMultipleValues": true,
"exportedParameters": [
{
"fieldName": "Resource",
"parameterName": "res_table",
"parameterType": 5
}
],
"showExportToExcel": true,
"queryType": 1,
"resourceType": "microsoft.resourcegraph/resources",
"crossComponentResources": [
"{Subscription}"
],
"visualization": "table",
"gridSettings": {
"formatters": [
{
"columnMatch": "Resource",
"formatter": 13,
"formatOptions": {
"linkTarget": "Resource",
"showIcon": true
}
},
{
"columnMatch": "storageAccountName",
"formatter": 0
},
{
"columnMatch": "resourceGroup",
"formatter": 0
},
{
"columnMatch": "location",
"formatter": 17
},
{
"columnMatch": "subscriptionId",
"formatter": 5
}
],
"rowLimit": 500,
"filter": true,
"labelSettings": [
{
"columnId": "Resource",
"label": "Storage Account"
},
{
"columnId": "storageAccountName",
"label": "Name"
},
{
"columnId": "resourceGroup",
"label": "Resource Group"
},
{
"columnId": "location",
"label": "Location"
},
{
"columnId": "subscriptionId",
"label": "Subscription"
}
]
}
},
"name": "grid-table"
},
{
"type": 12,
"content": {
"version": "NotebookGroup/1.0",
"groupType": "editable",
"items": [
{
"type": 11,
"content": {
"version": "LinkItem/1.0",
"style": "list",
"links": [
{
"id": "btn-table",
"cellValue": "res_table",
"linkTarget": "ArmAction",
"linkLabel": "📋📊 📊 Enable Table Diagnostics",
"style": "primary",
"linkIsContextBlade": true,
"armActionContext": {
"path": "{res_table}/tableServices/default/providers/microsoft.insights/diagnosticSettings/Sentinel-Diagnostics",
"headers": [],
"params": [
{
"key": "api-version",
"value": "2021-05-01-preview"
}
],
"isLongOperation": false,
"httpMethod": "PUT",
"applyToMultipleResourcesParameter": "res_table",
"title": "Enable Table Diagnostics",
"description": "Applies Sentinel-Diagnostics to tableServices/default",
"actionName": "Enable Table Diagnostics",
"runLabel": "Enable Table Diagnostics",
"body": "{\"properties\": {\"workspaceId\": \"{WorkspaceId}\", \"logs\": [{\"category\": \"StorageRead\", \"enabled\": true, \"retentionPolicy\": {\"days\": 0, \"enabled\": false}}, {\"category\": \"StorageWrite\", \"enabled\": true, \"retentionPolicy\": {\"days\": 0, \"enabled\": false}}, {\"category\": \"StorageDelete\", \"enabled\": true, \"retentionPolicy\": {\"days\": 0, \"enabled\": false}}], \"metrics\": [{\"category\": \"Transaction\", \"enabled\": true, \"retentionPolicy\": {\"days\": 0, \"enabled\": false}}]}}"
}
},
{
"id": "delete-table",
"cellValue": "res_table",
"linkTarget": "ArmAction",
"linkLabel": "🗑️ Remove Sentinel-Diagnostics",
"style": "secondary",
"linkIsContextBlade": true,
"armActionContext": {
"path": "{res_table}/tableServices/default/providers/microsoft.insights/diagnosticSettings/Sentinel-Diagnostics",
"headers": [],
"params": [
{
"key": "api-version",
"value": "2021-05-01-preview"
}
],
"isLongOperation": false,
"httpMethod": "DELETE",
"applyToMultipleResourcesParameter": "res_table",
"title": "Remove Diagnostic Setting",
"description": "Deletes the Sentinel-Diagnostics diagnostic setting from the selected resources. Only removes the setting named 'Sentinel-Diagnostics'.",
"actionName": "Remove Sentinel-Diagnostics",
"runLabel": "Remove Sentinel-Diagnostics",
"body": ""
}
}
]
},
"name": "btn-table"
}
]
},
"conditionalVisibility": {
"parameterName": "EnableDiagnostics",
"comparison": "isEqualTo",
"value": "true"
},
"name": "arm-table"
},
{
"type": 1,
"content": {
"json": "> **Parent AllMetrics** - Uses the Blob grid selection. Applies AllMetrics to the parent storage account.",
"style": "info"
},
"name": "parent-info"
},
{
"type": 12,
"content": {
"version": "NotebookGroup/1.0",
"groupType": "editable",
"items": [
{
"type": 11,
"content": {
"version": "LinkItem/1.0",
"style": "list",
"links": [
{
"id": "btn-parent",
"cellValue": "res_blob",
"linkTarget": "ArmAction",
"linkLabel": "📋📊 📈 Enable Parent AllMetrics Diagnostics",
"style": "primary",
"linkIsContextBlade": true,
"armActionContext": {
"path": "{res_blob}/providers/microsoft.insights/diagnosticSettings/Sentinel-Diagnostics",
"headers": [],
"params": [
{
"key": "api-version",
"value": "2021-05-01-preview"
}
],
"isLongOperation": false,
"httpMethod": "PUT",
"applyToMultipleResourcesParameter": "res_blob",
"title": "Enable Parent AllMetrics Diagnostics",
"description": "Applies Sentinel-Diagnostics to parent",
"actionName": "Enable Parent AllMetrics Diagnostics",
"runLabel": "Enable Parent AllMetrics Diagnostics",
"body": "{\"properties\": {\"workspaceId\": \"{WorkspaceId}\", \"metrics\": [{\"category\": \"AllMetrics\", \"enabled\": true, \"retentionPolicy\": {\"days\": 0, \"enabled\": false}}]}}"
}
},
{
"id": "delete-parent",
"cellValue": "res_blob",
"linkTarget": "ArmAction",
"linkLabel": "🗑️ Remove Sentinel-Diagnostics",
"style": "secondary",
"linkIsContextBlade": true,
"armActionContext": {
"path": "{res_blob}/providers/microsoft.insights/diagnosticSettings/Sentinel-Diagnostics",
"headers": [],
"params": [
{
"key": "api-version",
"value": "2021-05-01-preview"
}
],
"isLongOperation": false,
"httpMethod": "DELETE",
"applyToMultipleResourcesParameter": "res_blob",
"title": "Remove Diagnostic Setting",
"description": "Deletes the Sentinel-Diagnostics diagnostic setting from the selected resources. Only removes the setting named 'Sentinel-Diagnostics'.",
"actionName": "Remove Sentinel-Diagnostics",
"runLabel": "Remove Sentinel-Diagnostics",
"body": ""
}
}
]
},
"name": "btn-parent"
}
]
},
"conditionalVisibility": {
"parameterName": "EnableDiagnostics",
"comparison": "isEqualTo",
"value": "true"
},
"name": "arm-parent"
}
]
},
"conditionalVisibility": {
"parameterName": "mainTab",
"comparison": "isEqualTo",
"value": "storage"
},
"name": "group-storage"
},
{
"type": 12,
"content": {
"version": "NotebookGroup/1.0",
"groupType": "editable",
"items": [
{
"type": 1,
"content": {
"json": "> **Apps & Other Resources** - Select resources below and apply diagnostic settings. Covers Logic Apps, Web Apps, Automation Accounts, API Management, and Key Vaults.",
"style": "info"
},
"name": "apps-intro"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "Resources\n| where type in~ (\n \"microsoft.web/sites\",\n \"microsoft.logic/workflows\",\n \"microsoft.automation/automationaccounts\",\n \"microsoft.apimanagement/service\",\n \"microsoft.keyvault/vaults\"\n)\n| where resourceGroup in~ ({ResourceGroup:value})\n| extend resourceId = tolower(id)\n| join kind=leftouter (\n PolicyResources\n | where type =~ 'microsoft.policyinsights/policystates'\n | where properties.policyDefinitionAction =~ 'deployIfNotExists'\n | where tolower(tostring(properties.resourceType)) in~ (\n \"microsoft.web/sites\",\n \"microsoft.logic/workflows\",\n \"microsoft.automation/automationaccounts\",\n \"microsoft.apimanagement/service\",\n \"microsoft.keyvault/vaults\"\n )\n | where tostring(properties.complianceState) =~ 'Compliant'\n | project resourceId = tolower(tostring(properties.resourceId))\n) on resourceId\n| where isempty(resourceId1)\n| project subscriptionId, Resource=id, name, resourceGroup, location, type",
"size": 1,
"title": "Apps & Other - Select Resources",
"noDataMessage": "✅ No app resources found in the selected scope.",
"exportMultipleValues": true,
"exportedParameters": [
{
"fieldName": "Resource",
"parameterName": "resources",
"parameterType": 5
}
],
"showExportToExcel": true,
"queryType": 1,
"resourceType": "microsoft.resourcegraph/resources",
"crossComponentResources": [
"{Subscription}"
],
"visualization": "table",
"gridSettings": {
"formatters": [
{
"columnMatch": "$gen_group",
"formatter": 13,
"formatOptions": {
"linkTarget": "Resource",
"showIcon": true
}
},
{
"columnMatch": "subscriptionId",
"formatter": 5
},
{
"columnMatch": "Resource",
"formatter": 5
},
{
"columnMatch": "location",
"formatter": 17
},
{
"columnMatch": "type",
"formatter": 11,
"formatOptions": {
"showIcon": true
}
},
{
"columnMatch": "Details",
"formatter": 7,
"formatOptions": {
"linkTarget": "CellDetails",
"linkLabel": "View Details",
"linkIsContextBlade": true
}
}
],
"rowLimit": 500,
"filter": true,
"hierarchySettings": {
"treeType": 1,
"groupBy": [
"type"
],
"expandTopLevel": true,
"finalBy": "Resource"
},
"labelSettings": [
{
"columnId": "subscriptionId",
"label": "Subscription"
},
{
"columnId": "Resource",
"label": "Resource"
},
{
"columnId": "resourceGroup",
"label": "Resource Group"
},
{
"columnId": "location",
"label": "Location"
},
{
"columnId": "type",
"label": "Resource Type"
},
{
"columnId": "Details",
"label": "Details"
}
]
}
},
"name": "grid-apps"
},
{
"type": 12,
"content": {
"version": "NotebookGroup/1.0",
"groupType": "editable",
"items": [
{
"type": 1,
"content": {
"json": "### ➕ Add Diagnostic Settings\n\n1. Select rows (checkboxes) from the grid above.\n\n| Button | Logs | Metrics |\n|--------|------|--------|\n| 📋 Logs Only | `allLogs` | ❌ |\n| 📊 Metrics Only | ❌ | `AllMetrics` |\n| 📋📊 All | `allLogs` | `AllMetrics` |\n\n> Setting name: `Sentinel-Diagnostics`",
"style": "info"
},
"name": "intro-apps"
},
{
"type": 11,
"content": {
"version": "LinkItem/1.0",
"style": "list",
"links": [
{
"id": "logs-apps",
"cellValue": "resources",
"linkTarget": "ArmAction",
"linkLabel": "📋 Logs Only (allLogs category group)",
"style": "primary",
"linkIsContextBlade": true,
"armActionContext": {
"path": "{resources}/providers/microsoft.insights/diagnosticSettings/Sentinel-Diagnostics",
"headers": [],
"params": [
{
"key": "api-version",
"value": "2021-05-01-preview"
}
],
"isLongOperation": false,
"httpMethod": "PUT",
"applyToMultipleResourcesParameter": "resources",
"title": "Add Logs Only",
"description": "Creates Sentinel-Diagnostics with allLogs.",
"actionName": "Add Logs Only",
"runLabel": "Add Logs Only",
"body": "{\"properties\": {\"workspaceId\": \"{WorkspaceId}\", \"logs\": [{\"categoryGroup\": \"allLogs\", \"enabled\": true, \"retentionPolicy\": {\"days\": 0, \"enabled\": false}}]}}"
}
},
{
"id": "metrics-apps",
"cellValue": "resources",
"linkTarget": "ArmAction",
"linkLabel": "📊 Metrics Only (AllMetrics - no logs)",
"style": "primary",
"linkIsContextBlade": true,
"armActionContext": {
"path": "{resources}/providers/microsoft.insights/diagnosticSettings/Sentinel-Diagnostics",
"headers": [],
"params": [
{
"key": "api-version",
"value": "2021-05-01-preview"
}
],
"isLongOperation": false,
"httpMethod": "PUT",
"applyToMultipleResourcesParameter": "resources",
"title": "Add Metrics Only",
"description": "Creates Sentinel-Diagnostics with AllMetrics.",
"actionName": "Add Metrics Only",
"runLabel": "Add Metrics Only",
"body": "{\"properties\": {\"workspaceId\": \"{WorkspaceId}\", \"metrics\": [{\"category\": \"AllMetrics\", \"enabled\": true, \"retentionPolicy\": {\"days\": 0, \"enabled\": false}}]}}"
}
},
{
"id": "all-apps",
"cellValue": "resources",
"linkTarget": "ArmAction",
"linkLabel": "📋📊 All (allLogs category group + AllMetrics)",
"style": "primary",
"linkIsContextBlade": true,
"armActionContext": {
"path": "{resources}/providers/microsoft.insights/diagnosticSettings/Sentinel-Diagnostics",
"headers": [],
"params": [
{
"key": "api-version",
"value": "2021-05-01-preview"
}
],
"isLongOperation": false,
"httpMethod": "PUT",
"applyToMultipleResourcesParameter": "resources",
"title": "Add Logs + Metrics",
"description": "Creates Sentinel-Diagnostics with allLogs and AllMetrics.",
"actionName": "Add Logs + Metrics",
"runLabel": "Add Logs + Metrics",
"body": "{\"properties\": {\"workspaceId\": \"{WorkspaceId}\", \"logs\": [{\"categoryGroup\": \"allLogs\", \"enabled\": true, \"retentionPolicy\": {\"days\": 0, \"enabled\": false}}], \"metrics\": [{\"category\": \"AllMetrics\", \"enabled\": true, \"retentionPolicy\": {\"days\": 0, \"enabled\": false}}]}}"
}
},
{
"id": "delete-apps",
"cellValue": "resources",
"linkTarget": "ArmAction",
"linkLabel": "🗑️ Remove Sentinel-Diagnostics",
"style": "secondary",
"linkIsContextBlade": true,
"armActionContext": {
"path": "{resources}/providers/microsoft.insights/diagnosticSettings/Sentinel-Diagnostics",
"headers": [],
"params": [
{
"key": "api-version",
"value": "2021-05-01-preview"
}
],
"isLongOperation": false,
"httpMethod": "DELETE",
"applyToMultipleResourcesParameter": "resources",
"title": "Remove Diagnostic Setting",
"description": "Deletes the Sentinel-Diagnostics diagnostic setting from the selected resources. Only removes the setting named 'Sentinel-Diagnostics'.",
"actionName": "Remove Sentinel-Diagnostics",
"runLabel": "Remove Sentinel-Diagnostics",
"body": ""
}
}
]
},
"name": "links-apps"
}
]
},
"conditionalVisibility": {
"parameterName": "EnableDiagnostics",
"comparison": "isEqualTo",
"value": "true"
},
"name": "group-arm-apps"
}
]
},
"conditionalVisibility": {
"parameterName": "mainTab",
"comparison": "isEqualTo",
"value": "apps"
},
"name": "group-apps"
}
],
"fromTemplateId": "sentinel-UserWorkbook",
"$schema": "https://github.com/Microsoft/Application-Insights-Workbooks/blob/master/schema/workbook.json"
}
