User Audit Investigation Workbook: Deploy in Minutes, Investigate in Seconds
All right class.
This is the workbook I wish people would build once, instead of recreating the same “user activity timeline” from scratch every time HR/Legal comes knocking.
It’s called User Audit - Investigation Workbook, and it’s driven by two parameters: the target user’s UPN and a time range.

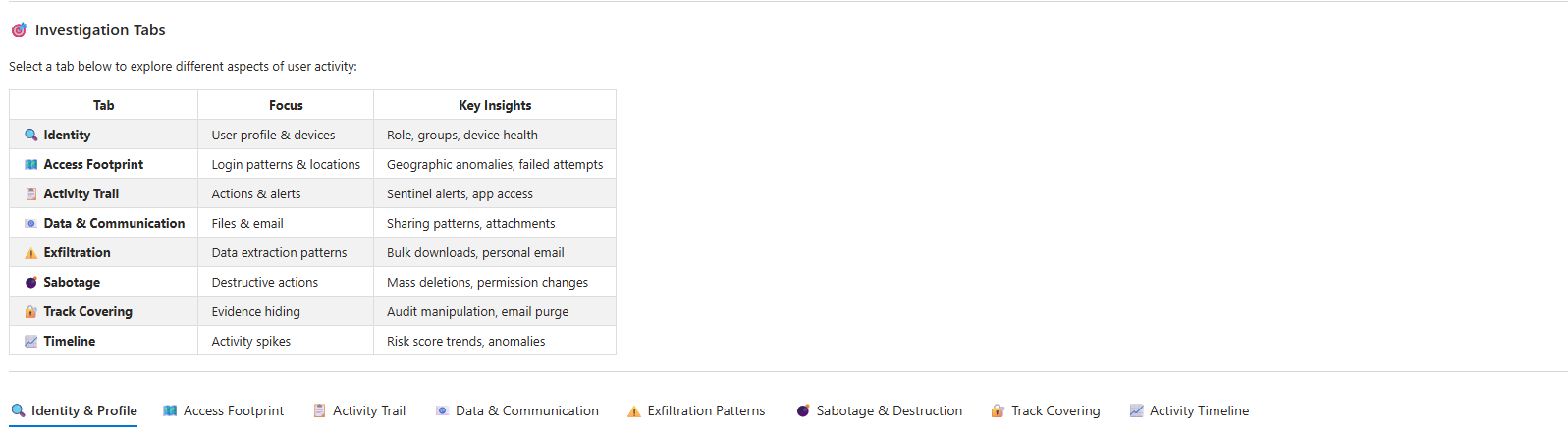

What you get
The workbook is split into tabs so you can move fast and keep the investigation narrative clean.
- Identity & Profile: identity record + associated devices + quick link to the Entra user blade.
- Access Footprint: sign-in patterns, locations, failed attempts — the “how are they getting in” view.
- Activity Trail: your “what did they touch / what flagged already” lane.
- Data & Communication: file access + mail signals in one place.
- Exfiltration Patterns: bulk downloads, weird sharing, the stuff that usually shows intent.
- Sabotage & Destruction: mass deletion + permission changes.
- Track Covering: audit config changes + mailbox purge behaviour (because insiders love deleting evidence).

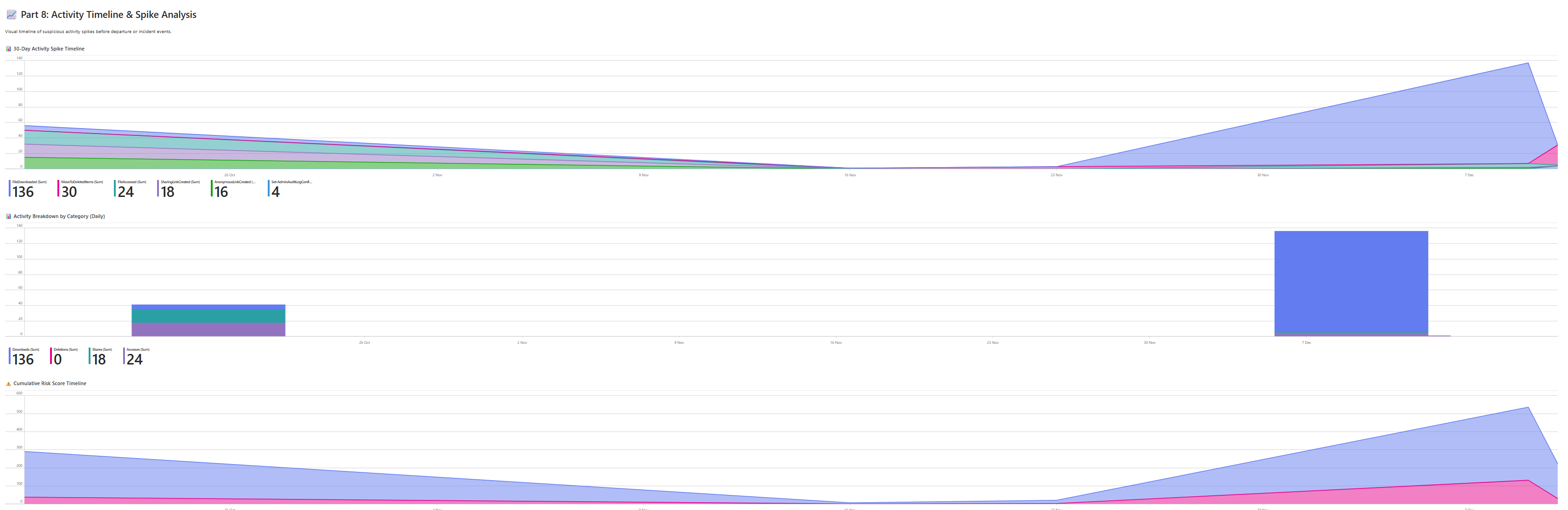

- Timeline: a 30-day spike chart + category breakdown + a simple “risk score” trend to show where to zoom in.
How to deploy it (copy/paste)
This is the part nobody reads, then they DM you “it didn’t work”. Don’t be that person.
- In Microsoft Sentinel, go to Workbooks and click Add workbook.
- Click Edit.
- Click Advanced Editor.
- Use the Gallery Template tab (not ARM Template) and paste the JSON from the end of this blog.
- Click Apply.

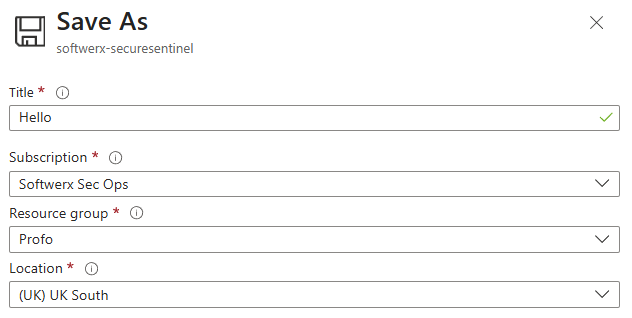

- Click Done Editing and Save As it as your own workbook. (pick up appropriate Title, Subscription, Resource Group and Location - ideally keep a good naming convention for anyone else who will use it and keep the same location as your Sentinel instance)
Don’t screw this up (quick checklist)
- You need the right data connected (M365 audit / OfficeActivity, Entra sign-ins, Defender tables, etc.). If those connectors aren’t on, the workbook won’t magically invent logs.
- Start with a short range (7d / 14d). If you go 90d on a noisy tenant, you’ll just DDoS your own eyeballs.
- If a query returns nothing, don’t “fix the KQL” first - check ingestion and table availability first.
JSON
{
"version": "Notebook/1.0",
"items": [
{
"type": 1,
"content": {

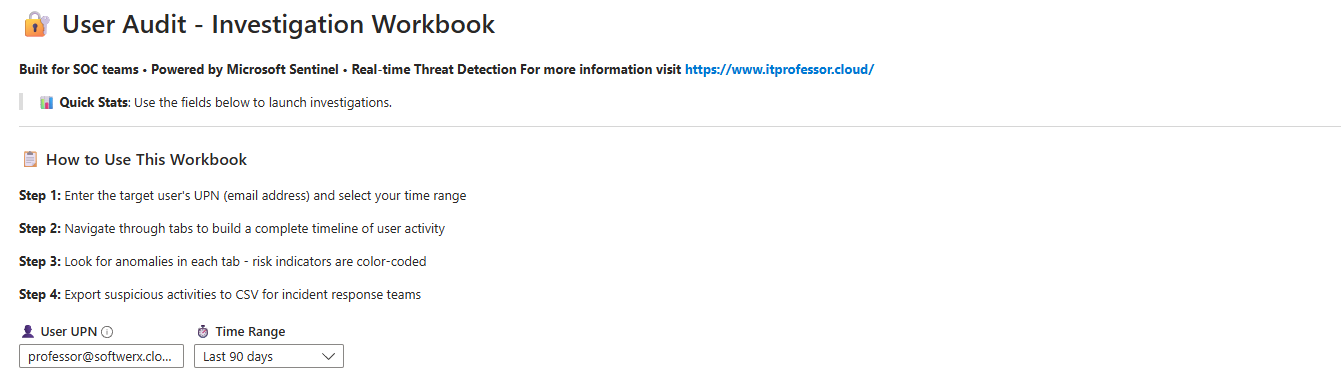

"json": "# 🔐 User Audit - Investigation Workbook\n\n**Built for SOC teams • Powered by Microsoft Sentinel • Real-time Threat Detection**\n**For more information visit https://www.itprofessor.cloud/**\n\n> 📊 **Quick Stats**: Use the fields below to launch investigations.\n\n---"
},
"name": "workbook_header"
},
{
"type": 1,
"content": {
"json": "### 📋 How to Use This Workbook\n\n**Step 1:** Enter the target user's UPN (email address) and select your time range\n\n**Step 2:** Navigate through tabs to build a complete timeline of user activity\n\n**Step 3:** Look for anomalies in each tab - risk indicators are color-coded\n\n**Step 4:** Export suspicious activities to CSV for incident response teams"
},
"name": "instructions_panel"
},
{
"type": 9,
"content": {
"version": "KqlParameterItem/1.0",
"parameters": [
{
"id": "user_upn_param",
"version": "KqlParameterItem/1.0",
"name": "UserUPN",
"label": "👤 User UPN",
"type": 1,
"description": "Enter the user's UPN (e.g., user@domain.com)",
"value": "",
"required": true
},
{
"id": "time_range_param",
"version": "KqlParameterItem/1.0",
"name": "TimeRange",
"label": "⏱️ Time Range",
"type": 4,
"value": {
"durationMs": 7776000000
},
"typeSettings": {
"selectableValues": [
{
"durationMs": 86400000
},
{
"durationMs": 604800000
},
{
"durationMs": 1209600000
},
{
"durationMs": 2592000000
},
{
"durationMs": 5184000000
},
{
"durationMs": 7776000000
}
],
"allowCustom": true
}
}
],
"style": "above",
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces"
},
"name": "parameters"
},
{
"type": 1,
"content": {
"json": "---\n### 🎯 Investigation Tabs\n\nSelect a tab below to explore different aspects of user activity:\n\n| Tab | Focus | Key Insights |\n|-----|-------|---------------|\n| 🔍 **Identity** | User profile & devices | Role, groups, device health |\n| 🗺️ **Access Footprint** | Login patterns & locations | Geographic anomalies, failed attempts |\n| 📋 **Activity Trail** | Actions & alerts | Sentinel alerts, app access |\n| 📧 **Data & Communication** | Files & email | Sharing patterns, attachments |\n| ⚠️ **Exfiltration** | Data extraction patterns | Bulk downloads, personal email |\n| 💣 **Sabotage** | Destructive actions | Mass deletions, permission changes |\n| 🔐 **Track Covering** | Evidence hiding | Audit manipulation, email purge |\n| 📈 **Timeline** | Activity spikes | Risk score trends, anomalies |\n\n---"
},
"name": "tab_guide"
},
{
"type": 11,
"content": {
"version": "LinkItem/1.0",
"style": "tabs",
"links": [
{
"id": "identity_tab",
"cellValue": "selectedTab",
"linkTarget": "parameter",
"linkLabel": "🔍 Identity & Profile",
"subTarget": "Identity",
"style": "link"
},
{
"id": "access_footprint_tab",
"cellValue": "selectedTab",
"linkTarget": "parameter",
"linkLabel": "🗺️ Access Footprint",
"subTarget": "AccessFootprint",
"style": "link"
},
{
"id": "activity_trail_tab",
"cellValue": "selectedTab",
"linkTarget": "parameter",
"linkLabel": "📋 Activity Trail",
"subTarget": "ActivityTrail",
"style": "link"
},
{
"id": "data_communication_tab",
"cellValue": "selectedTab",
"linkTarget": "parameter",
"linkLabel": "📧 Data & Communication",
"subTarget": "DataComm",
"style": "link"
},
{
"id": "exfiltration_tab",
"cellValue": "selectedTab",
"linkTarget": "parameter",
"linkLabel": "⚠️ Exfiltration Patterns",
"subTarget": "Exfiltration",
"style": "link"
},
{
"id": "sabotage_tab",
"cellValue": "selectedTab",
"linkTarget": "parameter",
"linkLabel": "💣 Sabotage & Destruction",
"subTarget": "Sabotage",
"style": "link"
},
{
"id": "tracecovering_tab",
"cellValue": "selectedTab",
"linkTarget": "parameter",
"linkLabel": "🔐 Track Covering",
"subTarget": "TraceCovering",
"style": "link"
},
{
"id": "timeline_tab",
"cellValue": "selectedTab",
"linkTarget": "parameter",
"linkLabel": "📈 Activity Timeline",
"subTarget": "Timeline",
"style": "link"
}
]
},
"name": "tab_navigation"
},
{
"type": 1,
"content": {
"json": "---\n## 🔍 Part 1: Establishing Identity\n\n**Objective:** Who are we investigating? Establish the baseline context of the user's role, groups, and access profile.\n\n**Look for:**\n- Unexpected group memberships or privileged roles\n- Recently disabled accounts\n- Device trust issues (unmanaged devices, jailbroken phones)\n- Unusual geographic device registration\n\n---"
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "Identity"
},
"name": "enhanced_identity_header"
},
{
"type": 1,
"content": {
"json": "# 🔍 Part 1: Establishing Identity\n\nWho are we investigating? Establish the baseline context of the user's role, groups, and access profile."
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "Identity"
},
"name": "identity_header"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "let UserUPN = \"{UserUPN}\";\nlet UserPrincipalName_ = tostring(UserUPN);\nSigninLogs\n| where TimeGenerated >= ago(7d)\n| where UserPrincipalName contains UserPrincipalName_\n| extend DeviceBrowser = tostring(DeviceDetail.browser)\n| extend DeviceId = tostring(DeviceDetail.deviceId)\n| extend DeviceDisplayName = tostring(DeviceDetail.displayName)\n| extend DeviceOperatingSystem = tostring(DeviceDetail.operatingSystem)\n| extend DeviceTrustType = tostring(DeviceDetail.trustType)\n| extend DeviceIsManaged = tostring(DeviceDetail.isManaged)\n| extend City = tostring(LocationDetails.city)\n| extend CountryOrRegion = tostring(LocationDetails.countryOrRegion)\n| extend State = tostring(LocationDetails.state)\n| extend StatusAdditionalDetails = tostring(Status.additionalDetails)\n| extend StatusFailureReason = tostring(Status.failureReason)\n| project TimeGenerated, OperationName, UserDisplayName, UserPrincipalName, IPAddress, UserType, UserId, AuthenticationRequirement, AppDisplayName, AppId, ClientAppUsed, Location, RiskDetail, RiskState, IsRisky, RiskLevelDuringSignIn, DeviceDisplayName, DeviceBrowser, DeviceId, DeviceOperatingSystem, DeviceTrustType, City, State, StatusAdditionalDetails, StatusFailureReason, AutonomousSystemNumber, CrossTenantAccessType\n| summarize arg_max(TimeGenerated, *) by UserDisplayName, DeviceDisplayName, DeviceId, DeviceTrustType\n| project UserDisplayName, DeviceDisplayName, DeviceId, DeviceTrustType, DeviceOperatingSystem, DeviceBrowser",
"size": 0,
"title": "🖥️ Associated Devices",
"timeContextFromParameter": "TimeRange",
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"gridSettings": {
"formatters": [
{
"columnMatch": "DeviceIsManaged",
"formatter": 18,
"formatOptions": {
"thresholdsOptions": "colors",
"thresholdsGrid": [
{
"operator": "==",
"thresholdValue": "True",
"representation": "success",
"text": "Managed"
},
{
"operator": "==",
"thresholdValue": "False",
"representation": "4",
"text": "Unmanaged"
}
]
}
}
],
"filter": true
}
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "Identity"
},
"customWidth": "100",
"name": "query_device_analysis"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "let UserUPN = \"{UserUPN}\";\nIdentityInfo\n| where AccountUPN == UserUPN\n| project AccountUPN, GivenName, Surname, GroupMembership, Department, JobTitle, IsAccountEnabled, UserType",
"size": 4,
"title": "📄 Official Identity Record",
"timeContextFromParameter": "TimeRange",
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"gridSettings": {
"formatters": [
{
"columnMatch": "IsAccountEnabled",
"formatter": 18,
"formatOptions": {
"thresholdsOptions": "icons",
"thresholdsGrid": [
{
"operator": "==",
"thresholdValue": "true",
"representation": "success",
"text": "Enabled"
},
{
"operator": "==",
"thresholdValue": "false",
"representation": "4",
"text": "Disabled"
}
]
}
}
]
}
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "Identity"
},
"customWidth": "50",
"name": "query_identity_record"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "let UserUPN = \"{UserUPN}\";\nSigninLogs\n| where ResultType == 0\n| where UserPrincipalName == UserUPN\n| take 1\n| project UserProfile = strcat(\"https://portal.azure.com/#blade/Microsoft_AAD_IAM/UserDetailsMenuBlade/Profile/userId/\", UserId)",
"size": 4,
"title": "🔗 Direct Link to Entra ID Profile",
"timeContextFromParameter": "TimeRange",
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"gridSettings": {
"formatters": [
{
"columnMatch": "UserProfile",
"formatter": 7,
"formatOptions": {
"linkTarget": "Url",
"linkLabel": "Open in Azure Portal"
}
}
]
}
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "Identity"
},
"customWidth": "50",
"name": "query_entra_link"
},
{
"type": 1,
"content": {
"json": "---\n## 🗺️ Part 2: The Access Footprint\n\n**Objective:** Where and how has this user been active? Sign-in patterns, devices, locations, and failed login attempts.\n\n**Look for:**\n- Impossible travel scenarios (different geographic locations in short timeframes)\n- Logins from unusual countries or VPNs\n- Multiple failed authentication attempts\n- After-hours access patterns\n- New devices or browsers\n\n---"
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "AccessFootprint"
},
"name": "enhanced_access_header"
},
{
"type": 1,
"content": {
"json": "# 🗺️ Part 2: The Access Footprint\n\nWhere and how has this user been active? Sign-in patterns, devices, locations, and failed login attempts."
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "AccessFootprint"
},
"name": "access_header"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "let UserUPN = \"{UserUPN}\";\nSigninLogs\n| where UserPrincipalName has UserUPN\n| extend City = tostring(LocationDetails.city),\n State = tostring(LocationDetails.state),\n CountryOrRegion = tostring(LocationDetails.countryOrRegion),\n DeviceDisplayName = tostring(DeviceDetail.displayName),\n DeviceOperatingSystem = tostring(DeviceDetail.operatingSystem),\n StatusFailureReason = tostring(Status.failureReason)\n| project TimeGenerated,\n OperationName,\n UserDisplayName,\n IPAddress,\n UserType,\n AppDisplayName,\n ClientAppUsed,\n Location,\n DeviceDisplayName,\n DeviceOperatingSystem,\n City,\n State,\n CountryOrRegion,\n StatusFailureReason\n| sort by TimeGenerated desc",
"size": 0,
"title": "📊 Full-Spectrum Sign-in Report",
"timeContextFromParameter": "TimeRange",
"showExportToExcel": true,
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"gridSettings": {
"formatters": [
{
"columnMatch": "TimeGenerated",
"formatter": 6,
"formatOptions": {
"dateFormat": {
"showUtcTime": null,
"x": "yyyy-MM-dd HH:mm:ss"
}
}
},
{
"columnMatch": "StatusFailureReason",
"formatter": 18,
"formatOptions": {
"thresholdsOptions": "icons",
"thresholdsGrid": [
{
"operator": "isNotEmpty",
"representation": "4",
"text": "Failed"
},
{
"operator": "==",
"thresholdValue": "null",
"representation": "success",
"text": "Success"
}
]
}
}
],
"filter": true
}
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "AccessFootprint"
},
"customWidth": "100",
"name": "query_signin_spectrum"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "let UserUPN = \"{UserUPN}\";\nSigninLogs\n| where UserPrincipalName has UserUPN\n| summarize arg_max(TimeGenerated, *) by UserPrincipalName\n| project TimeGenerated,\n UserPrincipalName,\n AppDisplayName,\n IPAddress,\n Location = LocationDetails,\n DeviceDetail,\n ConditionalAccessStatus,\n UserType",
"size": 4,
"title": "🎯 Last Known Location",
"timeContextFromParameter": "TimeRange",
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"gridSettings": {
"formatters": [
{
"columnMatch": "TimeGenerated",
"formatter": 6,
"formatOptions": {
"dateFormat": {
"showUtcTime": null,
"x": "yyyy-MM-dd HH:mm:ss"
}
}
}
]
}
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "AccessFootprint"
},
"customWidth": "100",
"name": "query_last_location"
},
{
"type": 1,
"content": {
"json": "---\n## 📋 Part 3: The Activity Trail\n\n**Objective:** What actions did the user take? Security alerts, audit logs, application access, and suspicious activities.\n\n**Look for:**\n- High-confidence security alerts\n- Unusual administrative operations\n- Access to sensitive applications\n- Multiple failed authentication attempts\n- Privilege elevation attempts\n\n---"
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "ActivityTrail"
},
"name": "enhanced_activity_header"
},
{
"type": 1,
"content": {
"json": "# 📋 Part 3: The Activity Trail\n\nWhat actions did the user take? Security alerts, audit logs, application access, and suspicious activities."
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "ActivityTrail"
},
"name": "activity_header"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "let UserUPN = \"{UserUPN}\";\nSecurityAlert\n| mv-expand todynamic(Entities)\n| extend EntityName = tostring(Entities.DisplayName)\n| where isnotempty(EntityName)\n| where Entities contains UserUPN\n| project TimeGenerated, AlertName, Description, ProviderName, ConfidenceLevel, EntityName\n| sort by TimeGenerated desc",
"size": 0,
"title": "⚠️ Recent Sentinel Alerts",
"timeContextFromParameter": "TimeRange",
"showExportToExcel": true,
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"gridSettings": {
"formatters": [
{
"columnMatch": "ConfidenceLevel",
"formatter": 18,
"formatOptions": {
"thresholdsOptions": "colors",
"thresholdsGrid": [
{
"operator": "==",
"thresholdValue": "High",
"representation": "redBright",
"text": "High"
},
{
"operator": "==",
"thresholdValue": "Medium",
"representation": "yellow",
"text": "Medium"
},
{
"operator": "==",
"thresholdValue": "Low",
"representation": "blue",
"text": "Low"
}
]
}
}
],
"filter": true
}
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "ActivityTrail"
},
"customWidth": "100",
"name": "query_alerts"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "let UserUPN = \"{UserUPN}\";\nAuditLogs\n| extend InitiatorUPN = tostring(InitiatedBy.user.userPrincipalName)\n| where isnotempty(InitiatorUPN) and InitiatorUPN has UserUPN\n| mv-expand TargetResources\n| extend TargetUPN = tostring(TargetResources.userPrincipalName),\n ModifiedProperties = TargetResources.modifiedProperties\n| project TimeGenerated,\n InitiatorUPN,\n OperationName,\n ActivityDisplayName,\n TargetUPN,\n Result,\n ResultReason,\n ModifiedProperties\n| sort by TimeGenerated desc",
"size": 0,
"title": "📝 Entra ID Audit Trail",
"timeContextFromParameter": "TimeRange",
"showExportToExcel": true,
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"gridSettings": {
"formatters": [
{
"columnMatch": "Result",
"formatter": 18,
"formatOptions": {
"thresholdsOptions": "colors",
"thresholdsGrid": [
{
"operator": "==",
"thresholdValue": "Success",
"representation": "success",
"text": "Success"
},
{
"operator": "==",
"thresholdValue": "Failure",
"representation": "4",
"text": "Failure"
}
]
}
}
],
"filter": true
}
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "ActivityTrail"
},
"customWidth": "100",
"name": "query_audit_logs"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "let UserUPN = \"{UserUPN}\";\nSigninLogs\n| where UserPrincipalName == UserUPN\n| summarize AppAccessCount = count() by AppDisplayName\n| where isnotempty(AppDisplayName)\n| top 50 by AppAccessCount desc",
"size": 0,
"title": "🎯 Top Applications Accessed",
"timeContextFromParameter": "TimeRange",
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"visualization": "barchart",
"gridSettings": {
"formatters": [
{
"columnMatch": "AppAccessCount",
"formatter": 3,
"formatOptions": {
"palette": "blue"
}
}
]
},
"chartSettings": {
"xAxis": "AppDisplayName",
"yAxis": [
"AppAccessCount"
]
}
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "ActivityTrail"
},
"customWidth": "100",
"name": "query_top_apps"
},
{
"type": 1,
"content": {
"json": "---\n## 📧 Part 4: Data and Communication Trail\n\n**Objective:** File access, sharing, downloads, and email communications.\n\n**Look for:**\n- Mass file downloads or access\n- File sharing to external parties\n- Bulk uploads to cloud services\n- Email sent to personal accounts\n- Suspicious attachment patterns\n\n---"
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "DataComm"
},
"name": "enhanced_datacomm_header"
},
{
"type": 1,
"content": {
"json": "# 📧 Part 4: Data and Communication Trail\n\nFile access, sharing, downloads, and email communications."
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "DataComm"
},
"name": "data_comm_header"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "let UserUPN = \"{UserUPN}\";\nOfficeActivity\n| where RecordType == \"SharePointFileOperation\"\n| where UserId has UserUPN and Operation in (\"FileAccessed\", \"FileDownloaded\")\n| project TimeGenerated, UserId, Operation, SourceFileName, Site_Url, OfficeWorkload, ClientIP\n| where SourceFileName !contains \".aspx\"\n| sort by TimeGenerated desc",
"size": 0,
"title": "📁 Files Accessed & Downloaded",
"timeContextFromParameter": "TimeRange",
"showExportToExcel": true,
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"gridSettings": {
"formatters": [
{
"columnMatch": "TimeGenerated",
"formatter": 6,
"formatOptions": {
"dateFormat": {
"showUtcTime": null,
"x": "yyyy-MM-dd HH:mm:ss"
}
}
}
],
"filter": true
}
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "DataComm"
},
"customWidth": "100",
"name": "query_file_access"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "let UserUPN = \"{UserUPN}\";\nOfficeActivity\n| where RecordType == \"SharePointFileOperation\"\n| where UserId has UserUPN and Operation in (\"FileAccessed\", \"FileDownloaded\")\n| where SourceFileName !contains \".aspx\"\n| summarize Count = count() by bin(TimeGenerated,1d), Operation\n",
"size": 0,
"title": "📊 File Access Activity - Count by Date & Operation Type",
"timeContextFromParameter": "TimeRange",
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"visualization": "barchart",
"chartSettings": {
"xAxis": "TimeGenerated",
"seriesLabelSettings": [
{
"seriesName": "Operation",
"label": "Operation Type"
}
],
"xSettings": {
"label": "Date"
}
}
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "DataComm"
},
"customWidth": "100",
"name": "query_file_access_chart"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "let UserUPN = \"{UserUPN}\";\nOfficeActivity\n| where Operation in (\"SecureLinkCreated\", \"AddedToSecureLink\", \"SharingLinkUpdated\", \"SharingLinkCreated\", \"AnonymousLinkCreated\")\n| where UserId has UserUPN\n| project \n TimeGenerated,\n UserId,\n Operation,\n SourceFileName,\n Site_Url,\n TargetUserOrGroupName,\n OfficeObjectId,\n ClientIP\n| sort by TimeGenerated desc",
"size": 0,
"title": "🔗 File Sharing Activity",
"timeContextFromParameter": "TimeRange",
"showExportToExcel": true,
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"gridSettings": {
"formatters": [
{
"columnMatch": "TimeGenerated",
"formatter": 6,
"formatOptions": {
"dateFormat": {
"showUtcTime": null,
"x": "yyyy-MM-dd HH:mm:ss"
}
}
},
{
"columnMatch": "Operation",
"formatter": 18,
"formatOptions": {
"thresholdsOptions": "colors",
"thresholdsGrid": [
{
"operator": "contains",
"thresholdValue": "Anonymous",
"representation": "redBright",
"text": "ANON"
},
{
"operator": "contains",
"thresholdValue": "Link",
"representation": "orange",
"text": "LINK"
}
]
}
}
],
"filter": true
}
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "DataComm"
},
"customWidth": "100",
"name": "query_file_sharing"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "let UserUPN = \"{UserUPN}\";\nOfficeActivity\n| where UserId == UserUPN\n| where Operation in (\"FileAccessed\", \"FileDownloaded\", \"FileModified\", \"FileUploaded\")\n| summarize AccessCount = count() by SourceFileName, SourceFileExtension, Operation\n| where isnotempty(SourceFileName)\n| top 50 by AccessCount desc",
"size": 0,
"title": "📊 Most Frequently Accessed Files",
"timeContextFromParameter": "TimeRange",
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"visualization": "barchart",
"gridSettings": {
"formatters": [
{
"columnMatch": "AccessCount",
"formatter": 3,
"formatOptions": {
"palette": "green"
}
}
]
}
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "DataComm"
},
"customWidth": "100",
"name": "query_frequent_files"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "let UserUPN = \"{UserUPN}\";\nEmailEvents\n| where SenderFromAddress == UserUPN and EmailDirection == \"Outbound\"\n| project TimeGenerated, RecipientEmailAddress, Subject, ThreatTypes, DetectionMethods\n| where RecipientEmailAddress !contains \"journaling\"\n| sort by TimeGenerated desc",
"size": 0,
"title": "📮 Outbound Email Traffic",
"timeContextFromParameter": "TimeRange",
"showExportToExcel": true,
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"gridSettings": {
"filter": true
}
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "DataComm"
},
"customWidth": "100",
"name": "query_email_outbound"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "let UserUPN = \"{UserUPN}\";\nEmailAttachmentInfo\n| where SenderFromAddress has UserUPN\n| extend FileName_Lower = tolower(FileName)\n// Filter by length: GUID filenames are typically 32-36 chars long. \n| where not(\n FileType in (\"png\", \"jpg\", \"jpeg\", \"gif\", \"bmp\") and \n strlen(FileName) >= 32 and strlen(FileName) <= 40\n)\n| project \n TimeGenerated, \n FileName, \n FileType, \n SHA256, \n SenderFromAddress, \n RecipientEmailAddress\n| sort by TimeGenerated desc\n",
"size": 0,
"title": "📎 Email Attachment Forensics",
"timeContextFromParameter": "TimeRange",
"showExportToExcel": true,
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"gridSettings": {
"filter": true
}
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "DataComm"
},
"customWidth": "100",
"name": "query_attachments"
},
{
"type": 1,
"content": {
"json": "---\n## ⚠️ Part 5: Exfiltration Patterns\n\n**Objective:** Bulk downloads, archive creation, suspicious cloud storage access, and data extraction attempts.\n\n**Red Flags:**\n- Downloads > 100MB in short timeframe\n- Access to personal email accounts\n- Cloud storage uploads (OneDrive, Dropbox)\n- Archive file downloads (.zip, .rar, .7z)\n- After-hours exfiltration\n\n---"
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "Exfiltration"
},
"name": "enhanced_exfiltration_header"
},
{
"type": 1,
"content": {
"json": "# ⚠️ Part 5: Exfiltration Patterns\n\nBulk downloads, archive creation, suspicious cloud storage access, and data extraction attempts."
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "Exfiltration"
},
"name": "exfiltration_header"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "let UserUPN = \"{UserUPN}\";\nOfficeActivity\n| where UserId == UserUPN\n| where Operation in (\"FileDownloaded\", \"FileAccessed\")\n| project\n TimeGenerated,\n UserId,\n Operation,\n SourceFileName,\n Site_Url,\n ClientIP,\n UserAgent\n| where SourceFileName !contains \".aspx\"\n| where SourceFileName !contains \"theme\"\n| order by TimeGenerated desc",
"size": 0,
"title": "⬇️Downloads Detection",
"timeContextFromParameter": "TimeRange",
"showExportToExcel": true,
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"gridSettings": {
"formatters": [
{
"columnMatch": "TimeGenerated",
"formatter": 6,
"formatOptions": {
"dateFormat": {
"showUtcTime": null,
"x": "yyyy-MM-dd HH:mm:ss"
}
}
}
],
"filter": true
}
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "Exfiltration"
},
"customWidth": "100",
"name": "query_download_spike"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "let UserUPN = \"{UserUPN}\";\nOfficeActivity\n| where UserId == UserUPN\n| where Operation in (\"FileDownloaded\", \"FileAccessed\")\n| where SourceFileName !contains \".aspx\"\n| summarize Count = count() by bin(TimeGenerated,1d), Operation",
"size": 0,
"title": "📊 Downloads - Count by Date & Operation",
"timeContextFromParameter": "TimeRange",
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"visualization": "barchart",
"chartSettings": {
"xAxis": "TimeGenerated",
"seriesLabelSettings": [
{
"seriesName": "Operation",
"label": "Action"
}
],
"xSettings": {
"label": "Date"
}
}
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "Exfiltration"
},
"customWidth": "100",
"name": "query_download_chart"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "let UserUPN = \"{UserUPN}\";\nlet PersonalDomains = @\"(gmail\\.com|yahoo\\.com|outlook\\.com|hotmail\\.com|icloud\\.com)\";\nEmailEvents\n| where SenderFromAddress == UserUPN\n| where EmailDirection == \"Outbound\"\n| extend RecipientDomain = tostring(extract(@\"@(.+)\", 1, RecipientEmailAddress))\n| where RecipientDomain matches regex PersonalDomains\n| project\n TimeGenerated,\n SenderFromAddress,\n RecipientEmailAddress,\n RecipientDomain,\n Subject,\n AttachmentCount,\n EmailSize,\n DeliveryAction,\n DeliveryLocation\n| order by TimeGenerated desc",
"size": 0,
"title": "🚨 Personal Email Exfiltration (Gmail/Yahoo/Outlook)",
"timeContextFromParameter": "TimeRange",
"showExportToExcel": true,
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"gridSettings": {
"formatters": [
{
"columnMatch": "RecipientDomain",
"formatter": 18,
"formatOptions": {
"thresholdsOptions": "colors",
"thresholdsGrid": [
{
"operator": "isNotEmpty",
"representation": "redBright",
"text": "EXFILTRATION RISK"
}
]
}
},
{
"columnMatch": "AttachmentCount",
"formatter": 18,
"formatOptions": {
"thresholdsOptions": "colors",
"thresholdsGrid": [
{
"operator": ">",
"thresholdValue": "0",
"representation": "redBright",
"text": "HAS ATTACHMENTS"
}
]
}
}
],
"filter": true
}
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "Exfiltration"
},
"customWidth": "100",
"name": "query_personal_email"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "let UserUPN = \"{UserUPN}\";\nOfficeActivity\n| where UserId == UserUPN\n| where RecordType == \"SharePointSharingOperation\"\n| where Operation in (\"SharingLinkCreated\", \"AnonymousLinkCreated\", \"AddedToSecureLink\")\n| extend TargetAddress = tostring(TargetUserOrGroupName)\n| extend TargetDomain = tostring(extract(@\"@(.+)\", 1, TargetAddress))\n| project\n TimeGenerated,\n UserId,\n Operation,\n Site_Url,\n OfficeObjectId,\n SourceFileName,\n TargetAddress,\n TargetDomain,\n TargetUserOrGroupType\n| order by TimeGenerated desc",
"size": 0,
"title": "☁️ Cloud Storage Access & Anonymous Sharing",
"timeContextFromParameter": "TimeRange",
"showExportToExcel": true,
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"gridSettings": {
"formatters": [
{
"columnMatch": "TimeGenerated",
"formatter": 6,
"formatOptions": {
"dateFormat": {
"showUtcTime": null,
"x": "yyyy-MM-dd HH:mm:ss"
}
}
}
],
"filter": true
}
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "Exfiltration"
},
"customWidth": "100",
"name": "query_cloud_storage"
},
{
"type": 1,
"content": {
"json": "---\n## 💣 Part 6: Sabotage & Destruction Patterns\n\n**Objective:** Mass file deletion, permission removal, intentional destruction of data and access controls.\n\n**Critical Indicators:**\n- Deletion of entire folders/libraries\n- Permanent file purging (not recycle bin)\n- Removal of owners/members from groups\n- Bulk permission changes\n- Targeted project/team deletions\n\n---"
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "Sabotage"
},
"name": "enhanced_sabotage_header"
},
{
"type": 1,
"content": {
"json": "# 💣 Part 6: Sabotage & Destruction Patterns\n\nMass file deletion, permission removal, intentional destruction of data and access controls."
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "Sabotage"
},
"name": "sabotage_header"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "let UserUPN = \"{UserUPN}\";\nOfficeActivity\n| where UserId == UserUPN\n| where Operation in (\n \"FileDeleted\",\n \"FolderDeleted\",\n \"DeleteFileVersion\",\n \"PermanentlyDeletedFile\",\n \"RecycleBinEmptied\",\n \"FileRecycled\",\n \"FileDeletedFirstStageRecycleBin\"\n)\n| project\n TimeGenerated,\n UserId,\n Operation,\n SourceFileName,\n Site_Url,\n ClientIP\n| order by TimeGenerated desc",
"size": 0,
"title": "🗑️ Mass File Deletion",
"timeContextFromParameter": "TimeRange",
"showExportToExcel": true,
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"gridSettings": {
"formatters": [
{
"columnMatch": "TimeGenerated",
"formatter": 6,
"formatOptions": {
"dateFormat": {
"showUtcTime": null,
"x": "yyyy-MM-dd HH:mm:ss"
}
}
}
],
"filter": true
}
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "Sabotage"
},
"customWidth": "100",
"name": "query_mass_deletion"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "let UserUPN = \"{UserUPN}\";\nOfficeActivity\n| where UserId == UserUPN\n| where Operation in (\n \"FileDeleted\",\n \"FolderDeleted\",\n \"DeleteFileVersion\",\n \"PermanentlyDeletedFile\",\n \"RecycleBinEmptied\",\n \"FileRecycled\",\n \"FileDeletedFirstStageRecycleBin\"\n)\n| summarize Count = count() by bin(TimeGenerated,1d), Operation",
"size": 0,
"title": "📊 File Deletions - Count by Date & Deletion Type",
"timeContextFromParameter": "TimeRange",
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"visualization": "barchart",
"chartSettings": {
"xAxis": "TimeGenerated",
"seriesLabelSettings": [
{
"seriesName": "Operation",
"label": "Deletion Type"
}
],
"xSettings": {
"label": "Date"
}
}
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "Sabotage"
},
"customWidth": "100",
"name": "query_mass_deletion_chart"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "let UserUPN = \"{UserUPN}\";\nAuditLogs\n| where InitiatedBy.user.userPrincipalName == UserUPN\n or InitiatedBy.app.displayName == UserUPN\n| where OperationName in (\"Remove member from group\",\n \"Add member to group\",\n \"Update group\",\n \"Remove app role assignment member\",\n \"Remove owner from group\")\n| extend\n Actor = tostring(InitiatedBy.user.userPrincipalName),\n ActorIP = tostring(InitiatedBy.user.ipAddress)\n| extend\n UserRemoved = tostring(TargetResources[0].userPrincipalName),\n GroupName = tostring(parse_json(tostring(parse_json(tostring(TargetResources[0].modifiedProperties))[1].oldValue))),\n GroupId = tostring(TargetResources[1].id),\n ModifiedProps = tostring(TargetResources[0].modifiedProperties)\n| project\n TimeGenerated,\n OperationName,\n Actor,\n ActorIP,\n UserRemoved,\n GroupName,\n GroupId,\n ModifiedProps\n| order by TimeGenerated desc\n",
"size": 0,
"title": "🔐 Permission Change (Group/Owner Removal)",
"timeContextFromParameter": "TimeRange",
"showExportToExcel": true,
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"gridSettings": {
"formatters": [
{
"columnMatch": "OperationName",
"formatter": 18,
"formatOptions": {
"thresholdsOptions": "colors",
"thresholdsGrid": [
{
"operator": "contains",
"thresholdValue": "Remove",
"representation": "redBright",
"text": "REMOVAL"
}
]
}
}
],
"filter": true
}
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "Sabotage"
},
"customWidth": "100",
"name": "query_permission_sabotage"
},
{
"type": 1,
"content": {
"json": "---\n## 🔐 Part 7: Track Covering\n\n**Objective:** Audit log manipulation, email purge, and attempts to hide evidence of malicious activity.\n\n**Smoking Gun Indicators:**\n- Audit log configuration changes\n- Bulk email deletion\n- Mailbox forwarding rules\n- Removal of admin logs\n- Disabled email retention\n\n---"
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "TraceCovering"
},
"name": "enhanced_tracecovering_header"
},
{
"type": 1,
"content": {
"json": "# 🔐 Part 7: Track Covering\n\nAudit log manipulation, email purge, and attempts to hide evidence of malicious activity."
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "TraceCovering"
},
"name": "tracecovering_header"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "let UserUPN = \"{UserUPN}\";\nOfficeActivity\n| where RecordType == \"ExchangeAdmin\"\n| where UserId == UserUPN\n| where Operation in (\n \"Set-AdminAuditLogConfig\"\n)\n| extend\n Parameters = todynamic(Parameters),\n ParametersList = tostring(Parameters)\n| project\n TimeGenerated,\n UserId,\n Operation,\n OfficeObjectId,\n ClientIP,\n ResultStatus,\n ParametersList,\n OriginatingServer,\n UserType,\n OfficeWorkload\n| order by TimeGenerated desc",
"size": 0,
"title": "🚨 Audit Log Manipulation Attempt",
"timeContextFromParameter": "TimeRange",
"showExportToExcel": true,
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"gridSettings": {
"formatters": [
{
"columnMatch": "ResultStatus",
"formatter": 18,
"formatOptions": {
"thresholdsOptions": "colors",
"thresholdsGrid": [
{
"operator": "!=",
"thresholdValue": "Failed",
"representation": "redBright",
"text": "SUCCESS - AUDIT COMPROMISED"
}
]
}
}
],
"filter": true
}
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "TraceCovering"
},
"customWidth": "100",
"name": "query_audit_manipulation"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "let UserUPN = \"{UserUPN}\";\nOfficeActivity\n| where RecordType == \"ExchangeItemGroup\"\n| where UserId == UserUPN\n| where Operation == \"MoveToDeletedItems\"\n| extend Items = todynamic(AffectedItems)\n| project \n TimeGenerated,\n UserId,\n Operation,\n ClientIP,\n ItemCount = array_length(Items),\n OfficeWorkload\n| order by TimeGenerated desc",
"size": 0,
"title": "📧 Email Purge Detection (Sent/Deleted Items)",
"timeContextFromParameter": "TimeRange",
"showExportToExcel": true,
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"gridSettings": {
"formatters": [
{
"columnMatch": "TimeGenerated",
"formatter": 6,
"formatOptions": {
"dateFormat": {
"showUtcTime": null,
"x": "yyyy-MM-dd HH:mm:ss"
}
}
}
],
"filter": true
}
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "TraceCovering"
},
"customWidth": "100",
"name": "query_email_purge"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "let UserUPN = \"{UserUPN}\";\nOfficeActivity\n| where RecordType == \"ExchangeItemGroup\"\n| where UserId == UserUPN\n| where Operation == \"MoveToDeletedItems\"\n| extend Items = todynamic(AffectedItems)\n| summarize Count = count() by bin(TimeGenerated, 1d)",
"size": 0,
"title": "📊 Email Purges - Events by Date",
"timeContextFromParameter": "TimeRange",
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"visualization": "barchart"
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "TraceCovering"
},
"customWidth": "100",
"name": "query_email_purge_chart"
},
{
"type": 1,
"content": {
"json": "---\n## 📈 Part 8: Activity Timeline & Spike Analysis\n\n**Objective:** Visual timeline of suspicious activity spikes before departure or incident events.\n\n**Pattern Analysis:**\n- Look for coordinated spikes across multiple activity types\n- Compare baseline activity to spike periods\n- Identify time-based patterns (before resignations, vacations)\n- Calculate risk score trends\n\n---"
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "Timeline"
},
"name": "enhanced_timeline_header"
},
{
"type": 1,
"content": {
"json": "# 📈 Part 8: Activity Timeline & Spike Analysis\n\nVisual timeline of suspicious activity spikes before departure or incident events."
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "Timeline"
},
"name": "timeline_header"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "let UserUPN = \"{UserUPN}\";\nOfficeActivity\n| where UserId == UserUPN\n| where Operation in (\n \"FileDownloaded\", \"FileAccessed\", \"FileCopied\", \"SharingLinkCreated\", \"AnonymousLinkCreated\",\n \"MoveToDeletedItems\", \"SoftDelete\", \"HardDelete\",\n \"Set-AdminAuditLogConfig\"\n)\n| summarize ActivityCount = count() by bin(TimeGenerated, 1d), Operation\n| render areachart with (title=\"Insider Risk Activity Spikes - 30 Day Timeline\", xtitle=\"Date\", ytitle=\"Activity Count\")",
"size": 0,
"title": "📊 30-Day Activity Spike Timeline",
"timeContextFromParameter": "TimeRange",
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"visualization": "areachart"
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "Timeline"
},
"customWidth": "100",
"name": "query_timeline_spikes"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "let UserUPN = \"{UserUPN}\";\nOfficeActivity\n| where UserId == UserUPN\n| where Operation in (\n \"FileDownloaded\", \"FileDeleted\", \"SharingLinkCreated\",\n \"FileAccessed\", \"FileCopied\"\n)\n| summarize\n Downloads = countif(Operation == \"FileDownloaded\"),\n Deletions = countif(Operation == \"FileDeleted\"),\n Shares = countif(Operation == \"SharingLinkCreated\"),\n Accesses = countif(Operation == \"FileAccessed\")\n by bin(TimeGenerated, 1d)\n| render barchart with (title=\"Suspicious Activity by Category - Daily\")",
"size": 0,
"title": "📊 Activity Breakdown by Category (Daily)",
"timeContextFromParameter": "TimeRange",
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"visualization": "barchart"
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "Timeline"
},
"customWidth": "100",
"name": "query_category_breakdown"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "let UserUPN = \"{UserUPN}\";\nlet RiskActions = dynamic([\n \"FileDownloaded\",\n \"FileDeleted\",\n \"SharingLinkCreated\",\n \"AnonymousLinkCreated\",\n \"MoveToDeletedItems\",\n \"Set-AdminAuditLogConfig\"\n]);\nOfficeActivity\n| where UserId == UserUPN\n| where Operation in (RiskActions)\n| extend RiskScore = case(\n Operation == \"AnonymousLinkCreated\", 10,\n Operation == \"Set-AdminAuditLogConfig\", 9,\n Operation == \"FileDeleted\", 7,\n Operation == \"MoveToDeletedItems\", 6,\n Operation == \"SharingLinkCreated\", 5,\n Operation == \"FileDownloaded\", 3,\n 1\n)\n| summarize TotalRiskScore = sum(RiskScore), EventCount = count() by bin(TimeGenerated, 1d)\n| render areachart with (title=\"Cumulative Risk Score Over Time\", xtitle=\"Date\", ytitle=\"Risk Score\")",
"size": 0,
"title": "⚠️ Cumulative Risk Score Timeline",
"timeContextFromParameter": "TimeRange",
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"visualization": "areachart"
},
"conditionalVisibility": {
"parameterName": "selectedTab",
"comparison": "isEqualTo",
"value": "Timeline"
},
"customWidth": "100",
"name": "query_risk_score"
}
],
"fallbackResourceIds": [
"/subscriptions/46f8bd0d-81e7-4e3b-9466-6e6a8cd80748/resourcegroups/securesentinel/providers/microsoft.operationalinsights/workspaces/softwerx-securesentinel"
],
"fromTemplateId": "sentinel-UserWorkbook",
"$schema": "https://github.com/Microsoft/Application-Insights-Workbooks/blob/master/schema/workbook.json"
}Class dismissed, enjoy!
